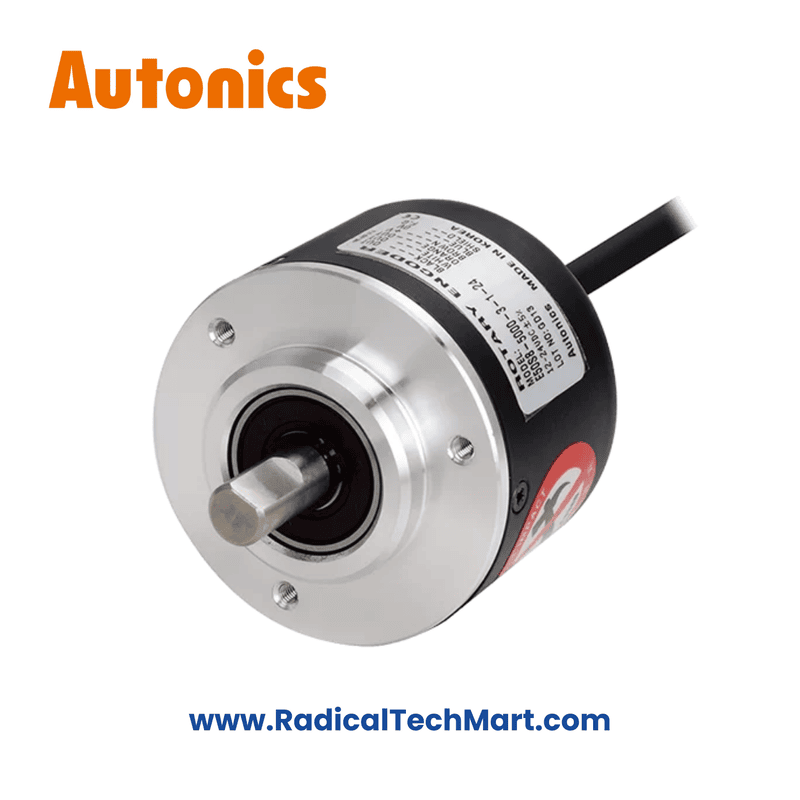

E50S8-100-3-T-1 Autonics Encoder
Non-returnable
₹6,217.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | E50S8-100-3-T-1 |
| Series | E50S Series shaft type of Incremental Rotary Encoder |
| Diameter | 50mm, Shaft Type |
| Shaft Outer Diameter | 8mm |
| Max. Response Frequency | 300kHz |
| Max. Allowable Revolution | 5000rpm |
| Starting Torque | Max. 70gf.cm |
| Resolution | 100PR |
| Output Phase | A, B, Z |
| Control Output | Totem Pole |
| Power Supply | 5-24VDC |
| Connection Type | Axial cable type |
| Protection Structure | IP50 |
| Ambient Temperature | -10 to 70℃, Storage: -25 to 85℃ |
| Ambient Humidity | 35 to 85% RH, Storage: 35 to 90% RH |
| Insulation Resistance | Min. 100MΩ |
| Dielectric Strength | 750VAC 50/60Hz for 1 Minute |
| Shaft Loading | Radial : 10kgf Thrust : 2.5kgf |
| Vibration | 1.5mm Amplitude |
| Shock | Approx. Max. 75G |
| Weight | Approx. 363g |
